8. L-systems

In the domain of plants, the models discussed up to this point have two limitations. First, they are extremely opportunistic: the growth of a structure is controlled almost exclusively by the environment. In reality, plant structures are determined to a large extent by genetic factors. In addition, all models described so far represent accretive growth; that is, a process in which a structure develops by the progressive addition of new material. The developmental patterns of higher organisms are often much more complicated.

For example, during the development of the compound leaf shown in Animation 5, the apex produces a succession of leaflets that grow in size while the internodes elongate and the branching angles increase. The changes of the branching angles and the elongation of the internodes are non-accretive components of this process.

Similar phenomena can be observed in the development of shoots of Fraxinus pennsylvanica, or green ash [Pru1994b].

Animation 6 illustrates this development from a fixed viewpoint, while Animation 7 shows the same simulation from the viewpoint of a camera focused on the shoot apex.


Note the gradual elongation of internodes and changes in branching angles. An additional view of shoot emergence from the bud is presented in Animation 8.

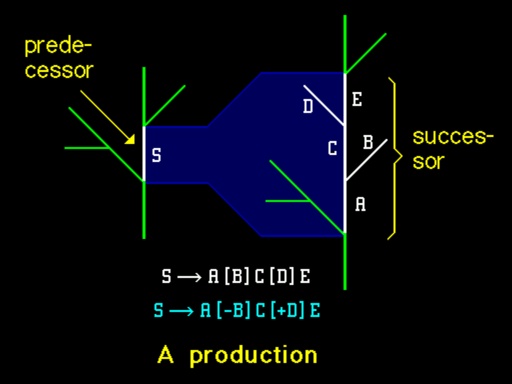

To capture such non-accretive, internally driven processes, Lindenmayer [Lin1968] proposed a model of development based on rewriting rules or productions. This model, known as L-systems, originally provided a formal description of the development of simple multicellular organisms and was later extended to higher plants. The rewriting rules operate on entire modules of a plant; for example an apex, an internode, or a leaf. Each rule consists of two components, a predecessor and a successor, as illustrated in Plate 12.

During a derivation step, the predecessor (identified by its label) is replaced by the successor. Lindenmayer developed a string notation that makes it easy to specify productions and carry out simulations. Even very simple L-systems can produce plant-like structures. For example, Plate 13 presents an L-system with two productions.

The first production specifies that the apex, shown in green, creates a branching substructure with three apices and an internode. The second production increases the internode length. Productions are assumed to be invariant with respect to scaling, which means that if we change the length of the predecessor by factor r, we should rescale the successor by the same factor. The developmental process starts with an apex and yields a compound leaf structure, resembling those found in some fern fronds.
